Product Description

Description:
Brand Name: Eachine
Item Name: FLF3_EVO_BRUSHED Flight Controller Built-in Flysky Receiver
Item NO.: QX958FL
Dimension: 22mm*32.5mm
Thickness: 1.2mm
Weight: 3g
Receiver: Flysky 6CH PPM Receiver (AFHDS)
Coreless motor plug: SH1.0
Firmware: SP RACING F3 EVO 1.13.0
Support work voltage: 3.6v~4.2v(1S Lipo battery)

Features:
1.F3_EVO_Brush revision is out of the F3 EVO SP RACING is based on a SP RACING F3 EVO firmware 32 brush flight control.
2.Independent design of the circuit structure
3.Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight.
4.With a large and high quality current NMOS transistors, operating current of up to 10A or more. Each Brushed motor is equipped with freewheeling diodes.
5.Integrated 2.4G Flysky 6CH PPM receiver (AFHDS).
6.With battery voltage detection and buzzer interface(solder pad)
7.LED_STRIP Function(solder pad)

Bind procedure:
1.Connect the battery to the board while Jumped the two “BIND” pins on the board, the green LED will flash fast, this indicates the receiver get into the binding mode.
2.Set receiver mode to AFHDS for your radio, then get your radio to binding mode.
3.The green led on the board will getting to be solid ,this indicates binding successful.
4.Reconnect the flight controller and the battery ,the green LED on the board flash fast again, this indicates connection is established with your transmitter.

Package included:
1 x FLF3_EVO_BRUSHED Flight Controller


Connection diagram:

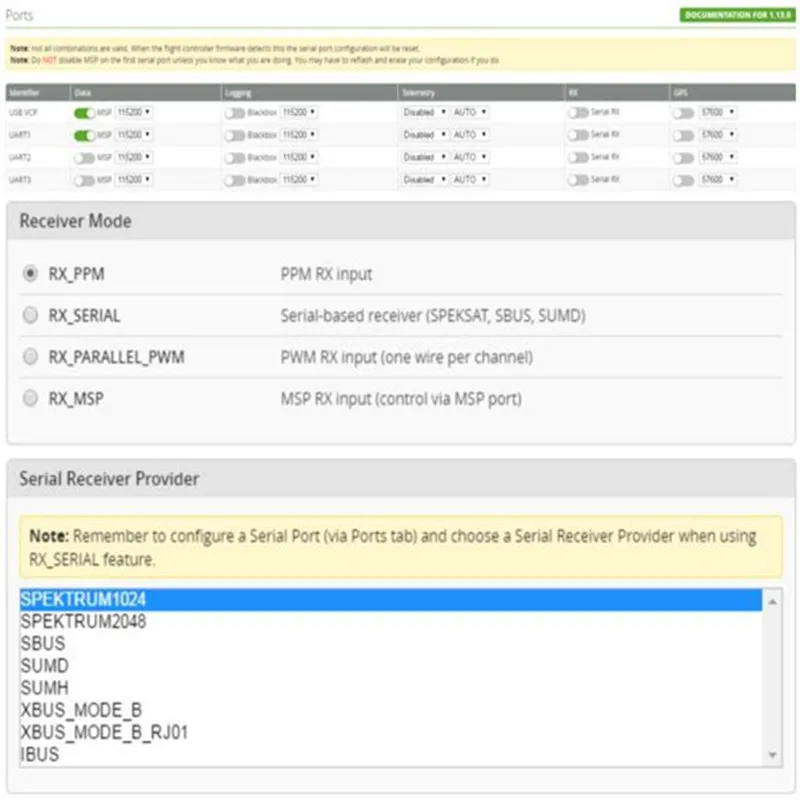

Receiver configuration:

Just Set Receiver mode to be RX_PPM
