Product Description

Specification:
Brand name: Eachine

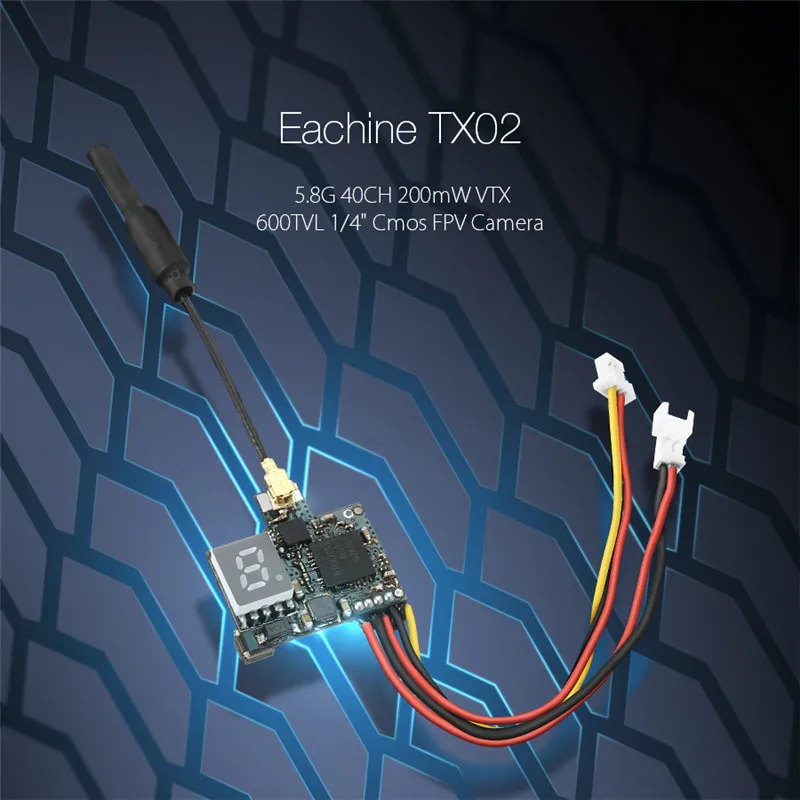

Item name: VTX02 Super Mini FPV Transmitter
Output power: 200mW
Input voltage: 3.2-5.5V
5V camera supply, 580mA (Max)
Video system: NTSC/PAL
Antenna for dimensions: 55mm X 5mm diameter
Antenna: IPEX

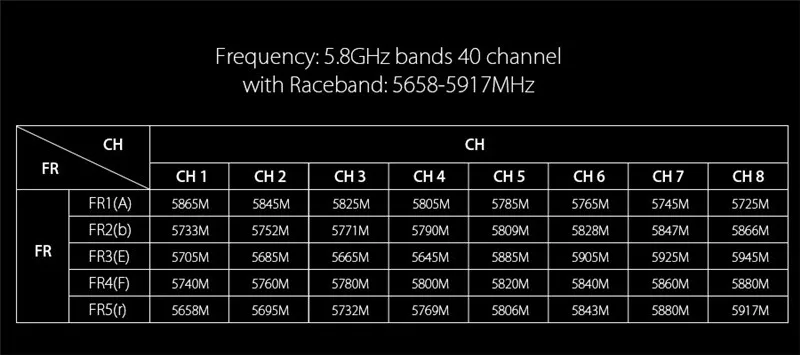

Frequency: 5.8Ghz 5 bands 40 channels, with Raceband: 5658-5917MHz

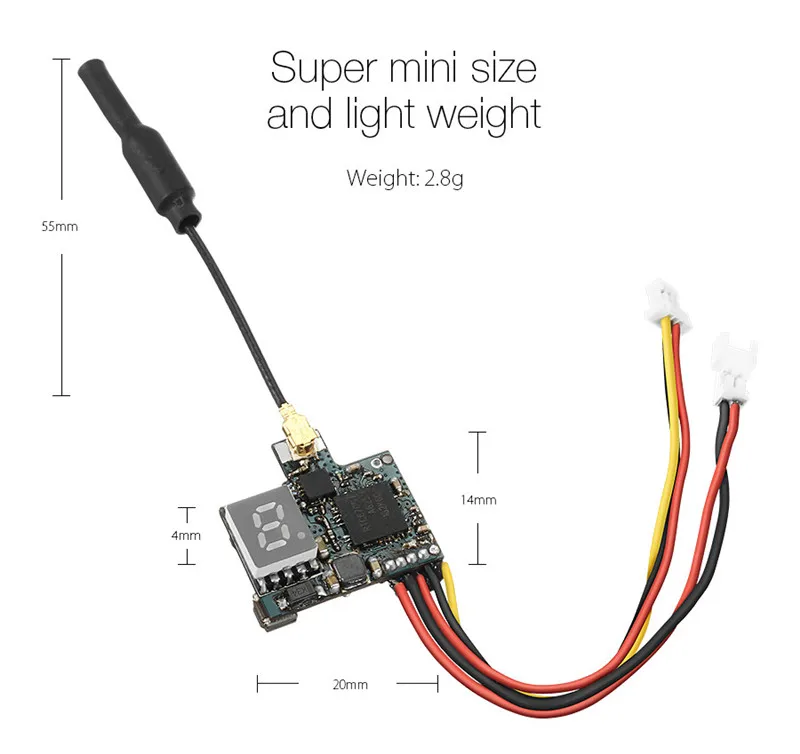

Size: 20*14mm (L*W)
Weight: 2.8g

Operation:
Three adjustable gears, on/off switch, CH, FR automatically cycle display three gears on LED after power on.
Short press button to adjust "CH", 1-8 adjustable.
Press and hold button 2s, transfer to FR, A, B, E, F, R adjustable, then short press button to adjust FR.
Press and hold button 5s to adjust on/off, "0" and "=" adjustable, short press button to adjust, "0" stands for "off", and "=" stands for "on".

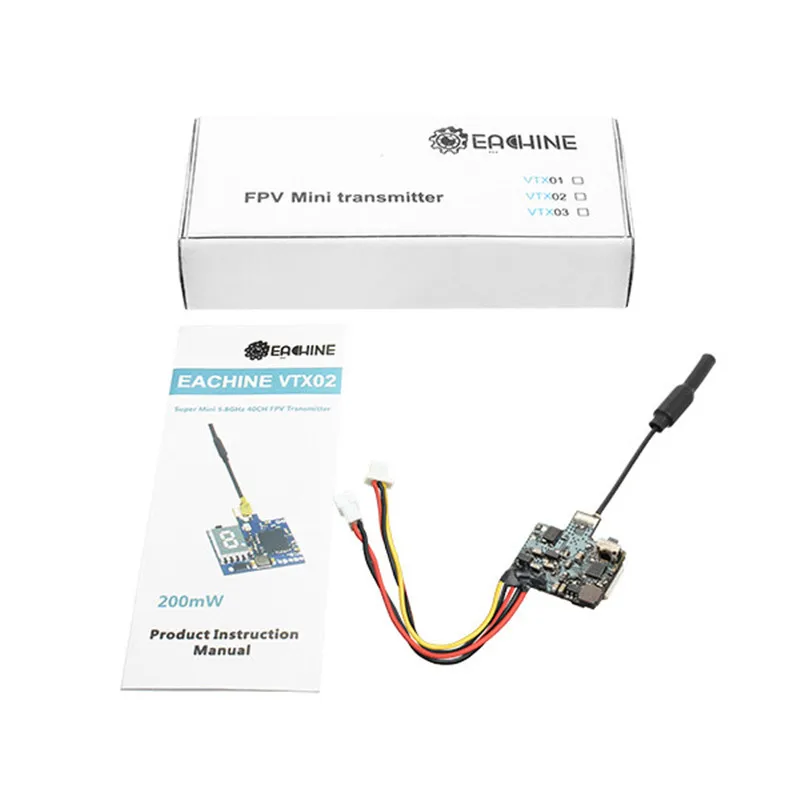

Package Included:
1 X FPV Transmitter
1 X IPEX antenna
