Product Description

aeProduct.getSubject()

Description:

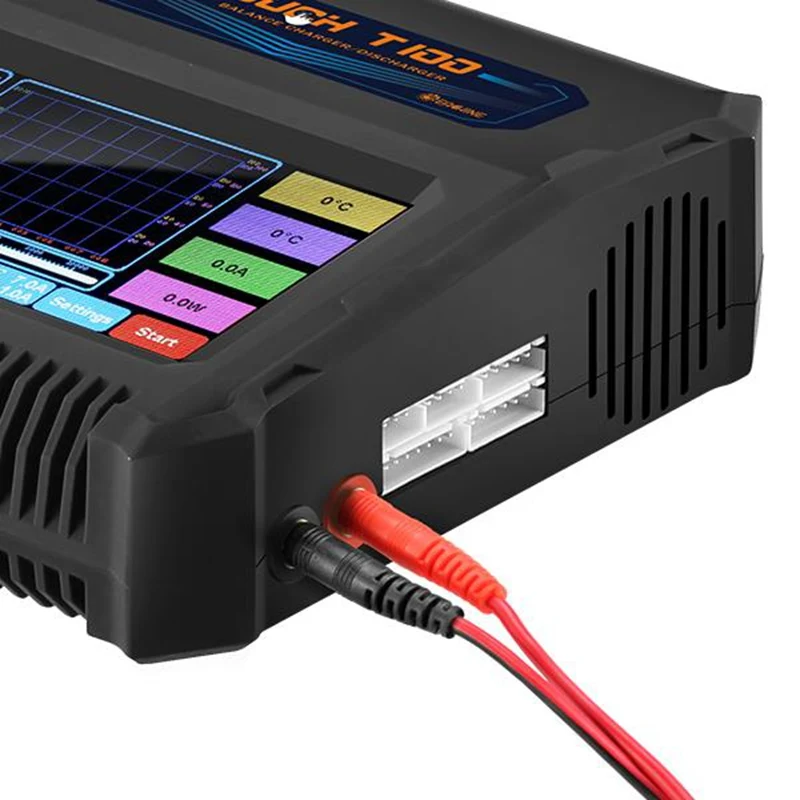

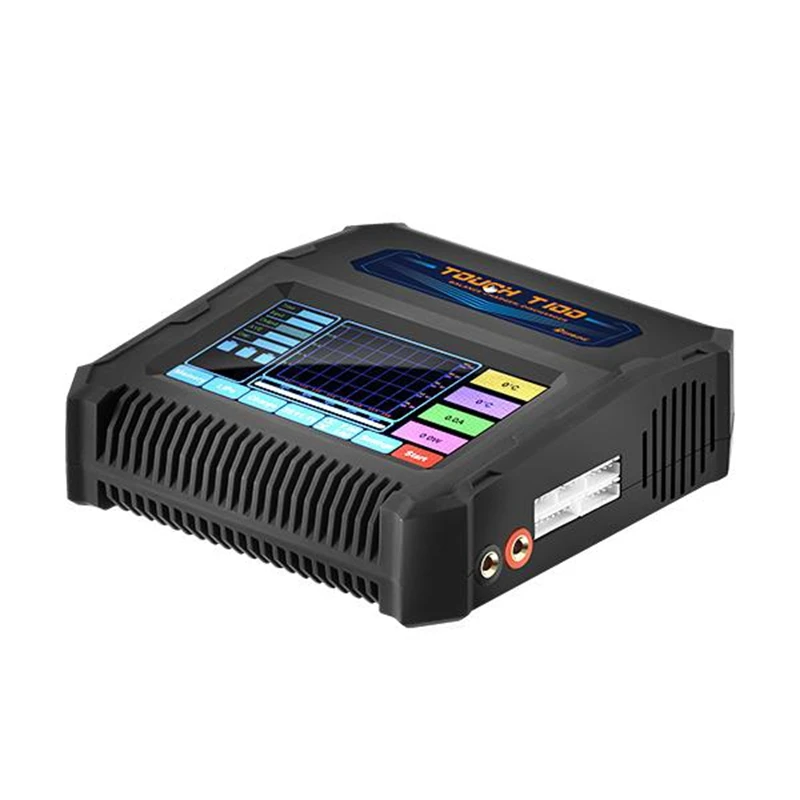

The T00 multi-Chemistry AC/DC charger is a high performance,microprocessor controlled charger/discharger
with built in lithium cell balancer. This charger has a 4.3\'\' color LCD touch screen and supports AC/DC dual
input,very easy and convenient to use.

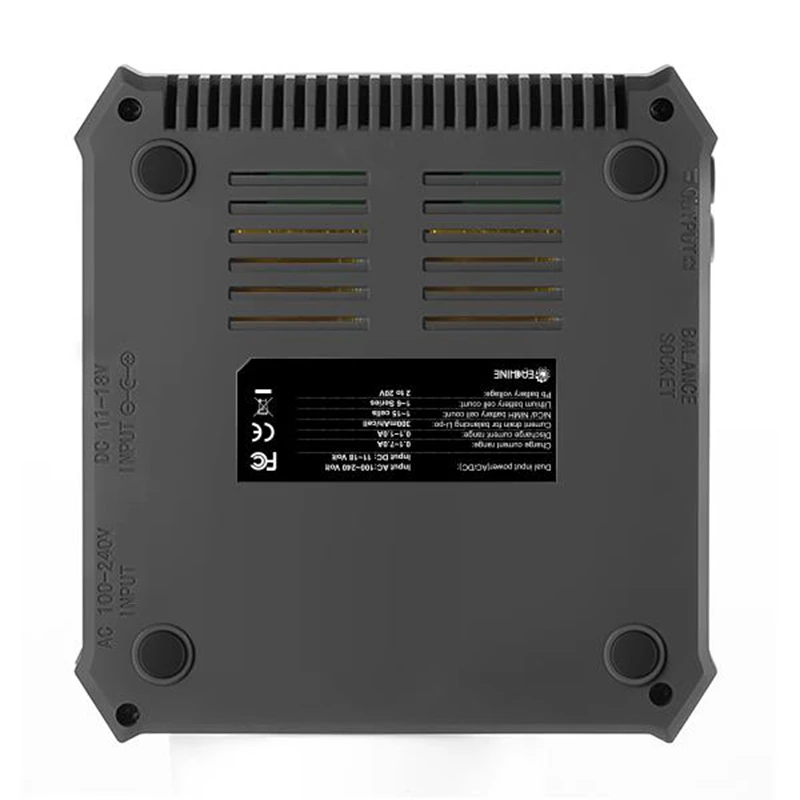

Specification:

Brand Name Eachine
Item Name Touch T100

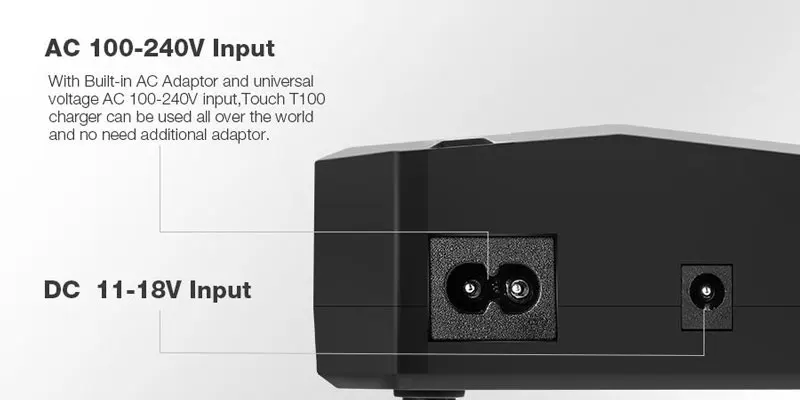

Operating Voltage Range AC 110V-240V
DC 11.0V-18.0V
Circuit Power Max. 100W for charging
Max. 5W for discharging
Charge Current Range 0.1-7.0A
Discharge Current Range 0.1-1.0A
Current Drain For Balancing Li-Po 300mAh/cell
NiCd/ NiMH Battery Cell Count 1-15 cells
Lithium Battery Cell Count 1-6 cells
Pb Battery Voltage 1-10 cells

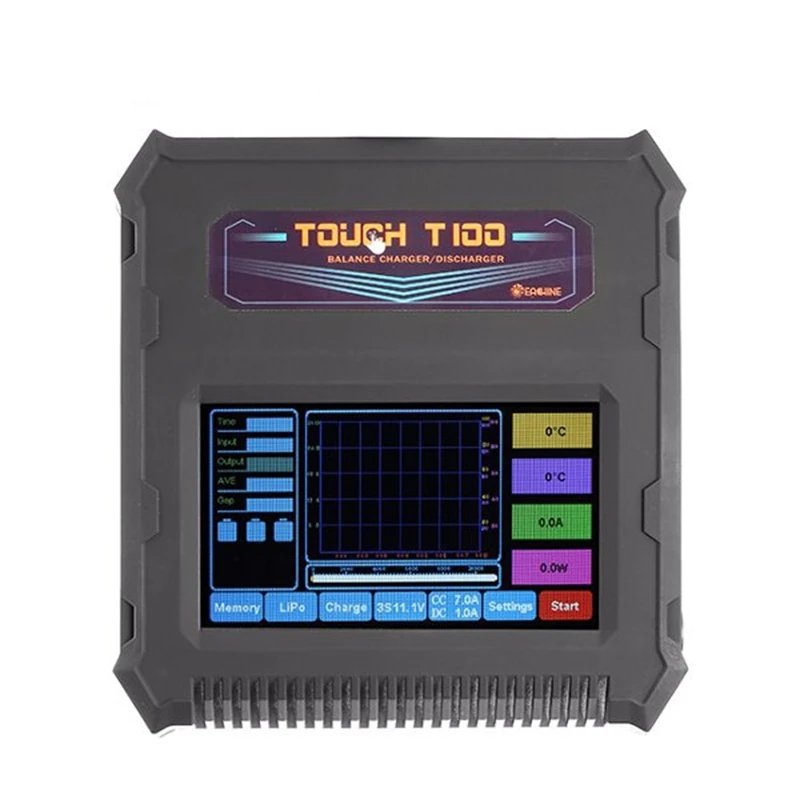

Display 4.3\'\' color LCD touch screen
Weight 728g (Included the cables and package)
Dimension 135x150x40mm

Features:
High-power And high-performance Circuit
It can charge or discharge up to 15 cells of NiCd/NiMH and 6 series of Lithium batteries with maximum current of 7.0A.

Individual Voltage Balancer For Lithium Batteries Inside
Does not require any extra balancer separately when charging Lithium batteries(Lilo/LiPO/LiFe) for cell voltage balancing.

Balance Individual Cells On Discharge
If the voltage of any one cell varies abnormally, the process will be stopped with the error message.

Accept Various Types of Lithium Battery
It can accept three types of Lithium batteries- Lilon, LiPo and LiFe.

Lithium Battery \'Fast\' and \'Store\' Mode
You can charge Lithium battery for special purposes. \'Fast\' charge reduces the charging time of
Lithium battery and \'Store\' mode controls the final voltage of the battery to be suit for long time storage.

Maximum Safety
Delta-peak sensitivity
Capacity cut-off

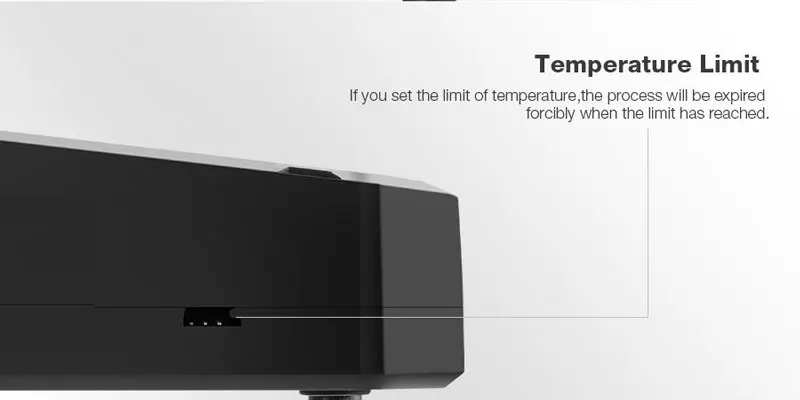

Temperature cut-off
Processing safety time
Input power low cut-off

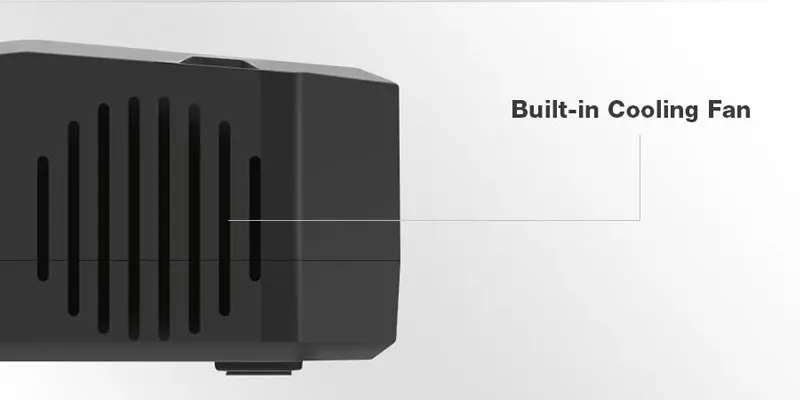

Automatic cooling fan

Data Store/Load
For users convenience it can store maximum 8 data of different batteries. These data can be called
out at any time you need and the process can be executed without program setting.

Cyclic Charging/Discharging
Perform 1 to 5 cycles of charge>discharge or discharge>charge continually for battery refreshing and balancing.

English Manual,Click Here

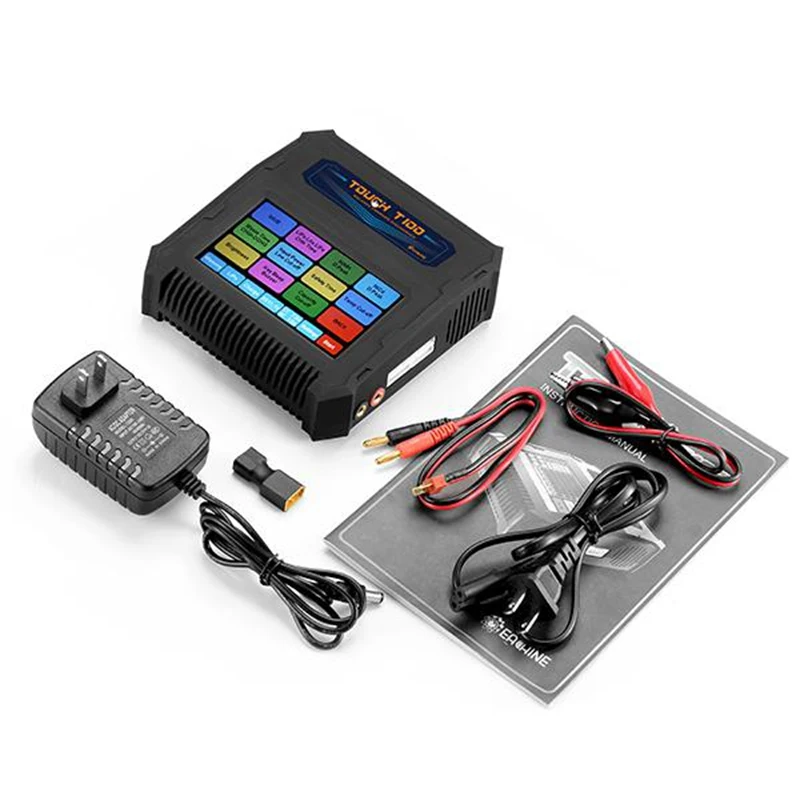

Package Included:
1x Eachine Touch T100 charger
1x AC Power supply cable(US)
1x DC cable with Alligator Clip charging connector
1x Banana connector to T plug cable

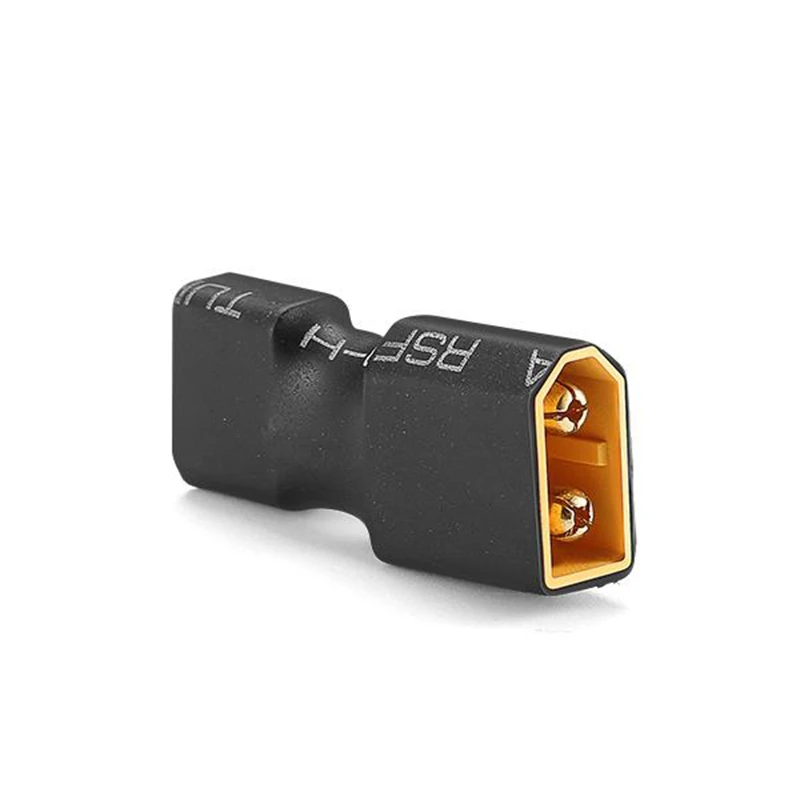

1x T plug to XT60 plug adapter
1x Manual
