Product Description









Description:
Brand: JX Servo

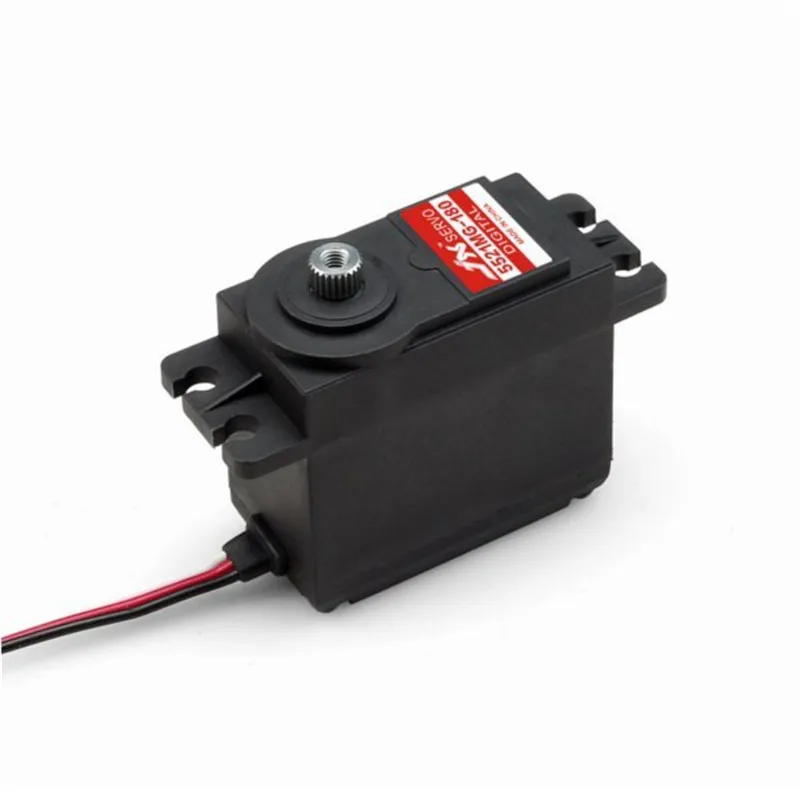

Item: PDI-5521MG 180 degree Servo
Dead Zone: 2μs
Max. Pulse Width: 500-2500 us (for MCU control board)
Operating Voltage: DC4.8V-6.6V
Operating Speed: (4.8V) 0.18sec/85°
Operating Speed: (6V) 0.16 sec/85°
Stall Torque: (4.8V) 17.25kg.cm (239.55oz/in)
Stall Torque: (6V) 20.32 kg.cm (281.89 oz/in)
Dimensions: 40.5X20.2X44.2mm /1.59 X0.80X1.74 in
Weight: 55.6 g (1.96oz)
Connector Wire Length: JR 265mm (10.43in)
Output Gear: 25T

Features:
Durable plastic case
Standard size digital servo
High-performance 20KG large torque
Metal gear, high quality brushed motor
Dual ball bearing supported output shaft

Package Included:
1x JX Servo PDI-5521MG 180 degree Servo
1x Accessories bag
